GENISYS Leaf Troffer

The Iowa-made Leaf Troffer is GENISYS flagship 2′ × 2′ PoE lighting fixture - a 3.75 lb composite shell with ColorTune white light, RJ45 plug-and-play install, and a fully recyclable housing for modern drop ceilings.

Open offices, classrooms, libraries, and community spaces get the same Leaf platform: Daylight Rhythm schedules or on-demand warm-to-cool tuning without a stamped-metal frame weighing down the ceiling or the install crew.

All PoE lighting fixtures · See Leaf at Roland Public Library

GENISYS Leaf Troffer PoE lighting fixture angled studio view with curved reflectors and center basket diffuser

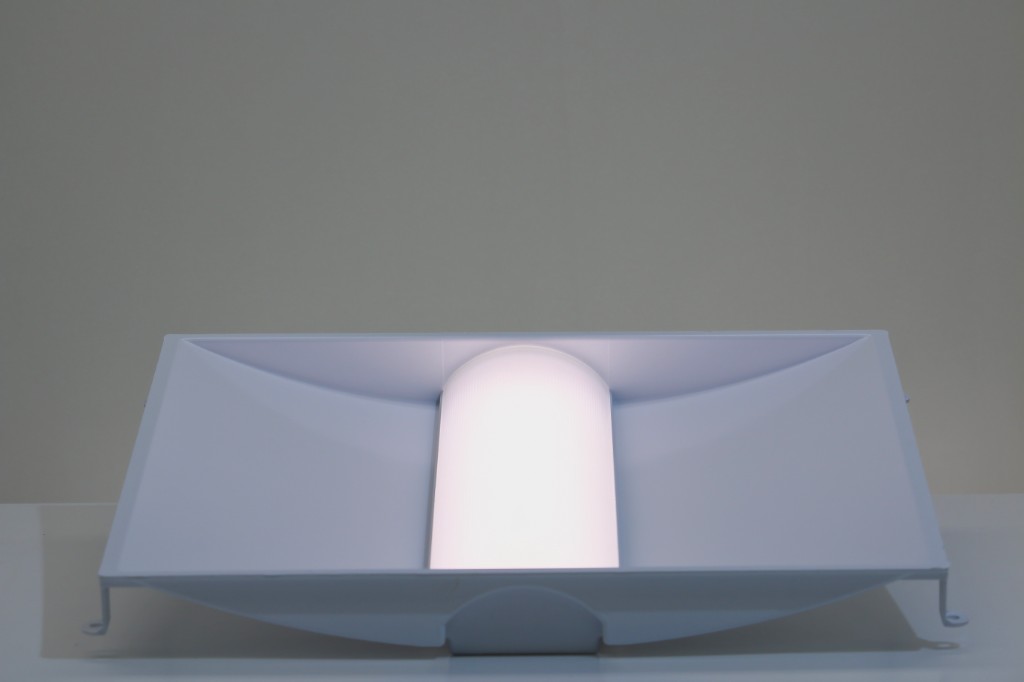

GENISYS Leaf Troffer PoE lighting illuminated at 4000K showing soft volumetric white light

2′ × 2′ Leaf Troffer

Ultra-lightweight design. High-impact PoE lighting performance.

3.75 lbs. That’s the total weight of the GENISYS Leaf Troffer. Ultra-lightweight composite housing and plug-and-play PoE installation cut ladder time versus traditional metal troffers. Proudly built in Iowa as the first tunable white-light fixture for PoE, Leaf features a fully recyclable shell - a greener, smarter alternative to stamped metal.

Composite housing one person can handle comfortably
Tunable white ColorTune from warm to cool
Fully recyclable shell with a cradle-to-cradle story
Designed and built in Iowa for GENISYS PoE lighting networks

Form factor: 2′ × 2′
Weight: 3.75 lbs
Output: 2700 Lumens
CCT: 2700K – 6500K (Tunable White)
Connection: RJ45 / PoE
Compliance: UL/CUL Listed, RoHS Compliant

Why Leaf

PoE lighting built for ceilings that need more than a metal box

Leaf keeps the familiar 2′ × 2′ commercial troffer footprint, then rethinks the housing, the install, and the light quality around Power over Ethernet.

Light enough to move fast

At 3.75 lbs, Leaf is dramatically easier to lift into a drop ceiling than a traditional metal troffer - less strain on installers and less time per fixture on the ladder.

Tunable white, not fixed CCT

ColorTune spans warm to cool white so the same Leaf array can support morning focus, midday clarity, or evening calm - including Daylight Rhythm schedules in software.

Composite, fully recyclable

The Leaf shell is a composite, fully recyclable material - a cleaner alternative to stamped metal and part of GENISYS’ cradle-to-cradle sustainability story.

Made for the network

Leaf is purpose-built for GENISYS PoE lighting: power and control arrive over Ethernet, so the fixture is ready the moment it is addressed on the system.

ColorTune

One Leaf Troffer. Warm to cool white on demand.

Tunable white PoE lighting lets the same fixture shift color temperature for tasks, circadian schedules, or Daylight Rhythm - without changing hardware.

GENISYS Leaf Troffer PoE lighting at 3500K warm-neutral white, angled view — 3500K

GENISYS Leaf Troffer PoE lighting at 4000K neutral white, angled view — 4000K

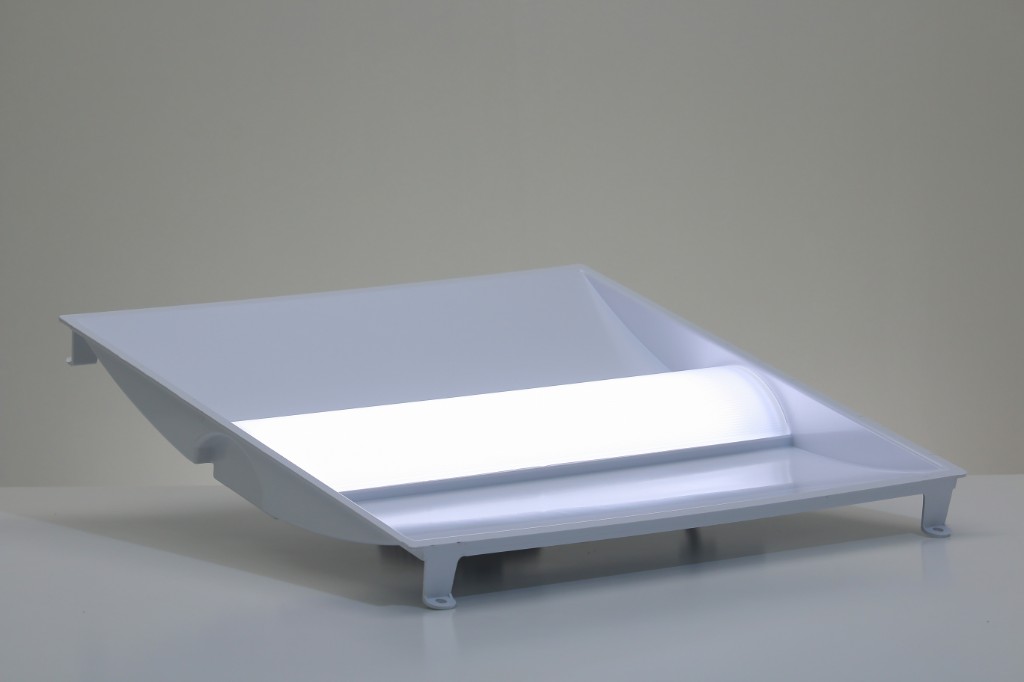

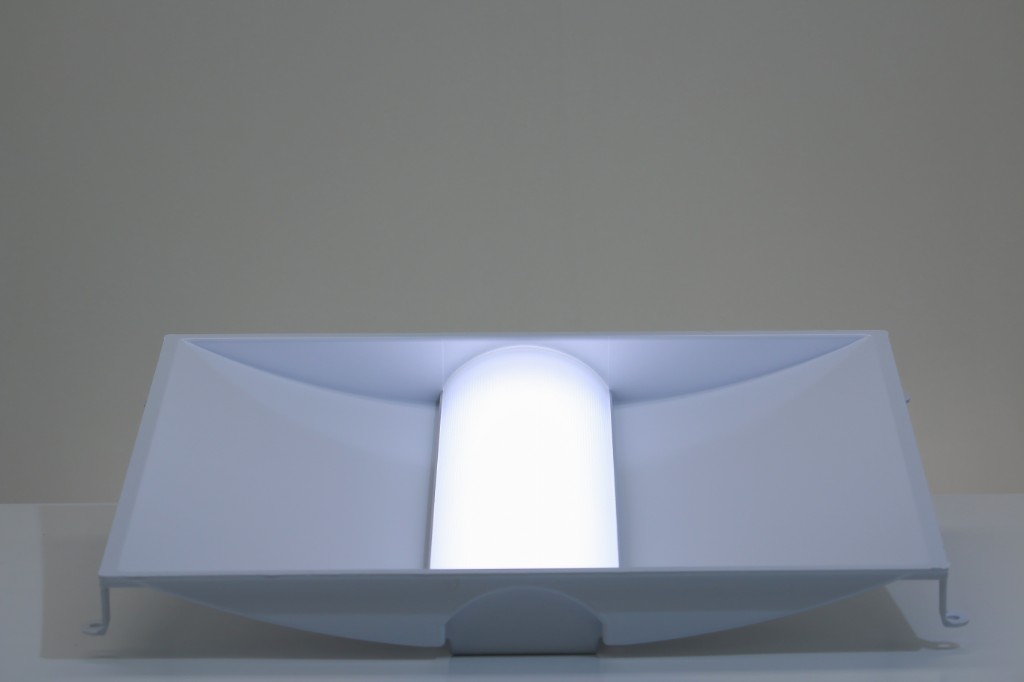

GENISYS Leaf Troffer PoE lighting at 5000K cool white, angled view — 5000K

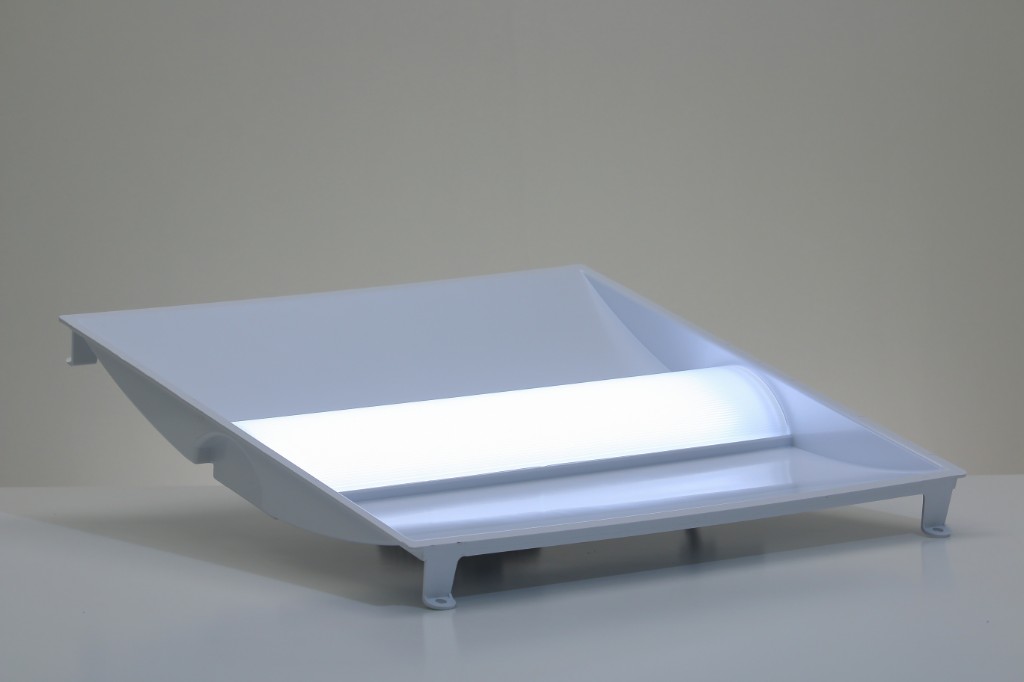

GENISYS Leaf Troffer PoE lighting at 6000K cool daylight white, angled view — 6000K

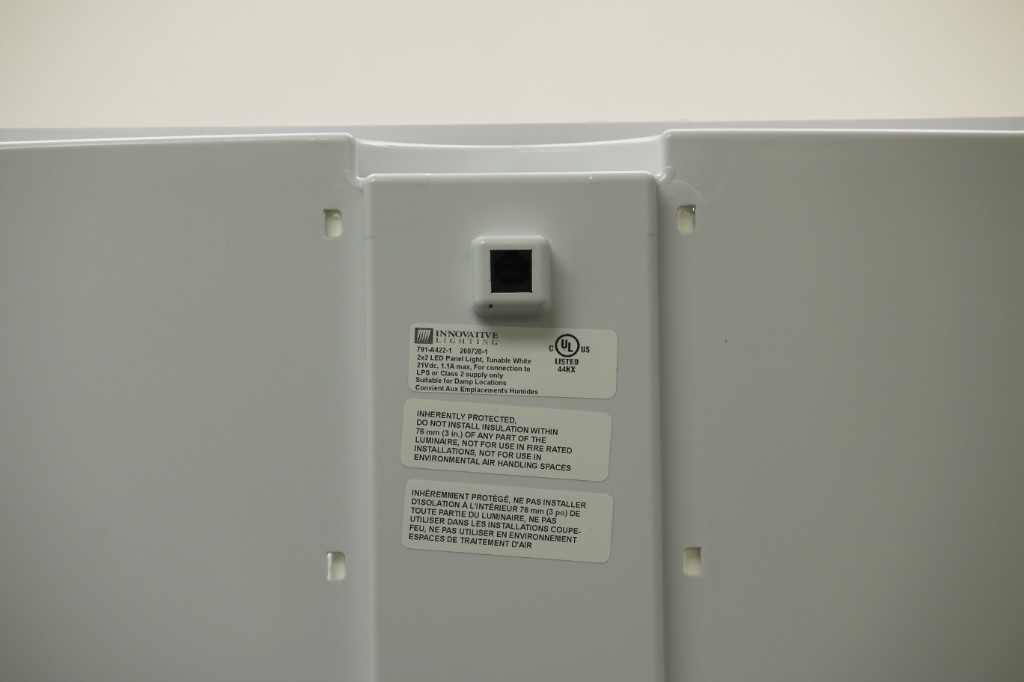

GENISYS Leaf Troffer PoE RJ45 jack and UL label for 2x2 tunable white panel light

Plug-and-play PoE

Drop it in. Plug the RJ45. Tune the white.

Leaf is designed for standard drop-ceiling grids and GENISYS IntelliDrive-powered runs. Installers seat the lightweight 2′ × 2′ body, land the PoE connection, and move on - no high-voltage whip at the fixture and no specialty AC driver inventory to chase.

Once on the network, Leaf joins ColorTune scenes, Daylight Rhythm, schedules, and sensor-driven dimming like any other GENISYS PoE lighting fixture. From a small library addition to a multi-floor HQ, the same Leaf platform scales with the cabling plant.

2′ × 2′ form factor for common acoustic tile grids
RJ45 PoE power and control - Class 2 / LPS supply
Works with GENISYS software for Rhythm and on-demand CCT

Product details

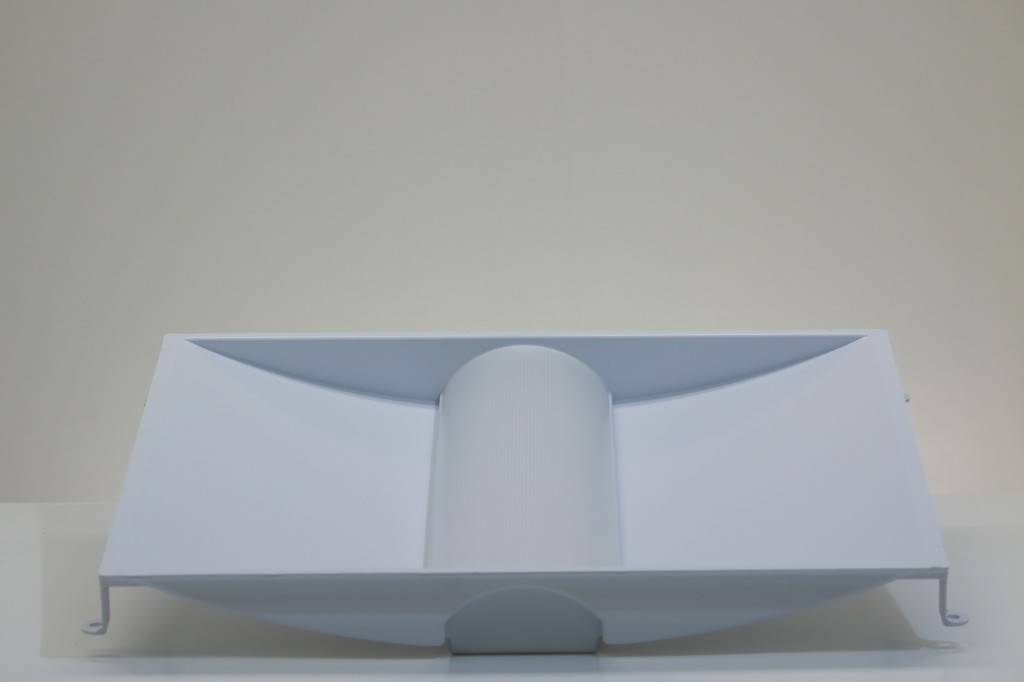

Front, side, and back of the Leaf Troffer

Studio views of the curved center-basket optics, slim composite housing, and PoE-ready rear.

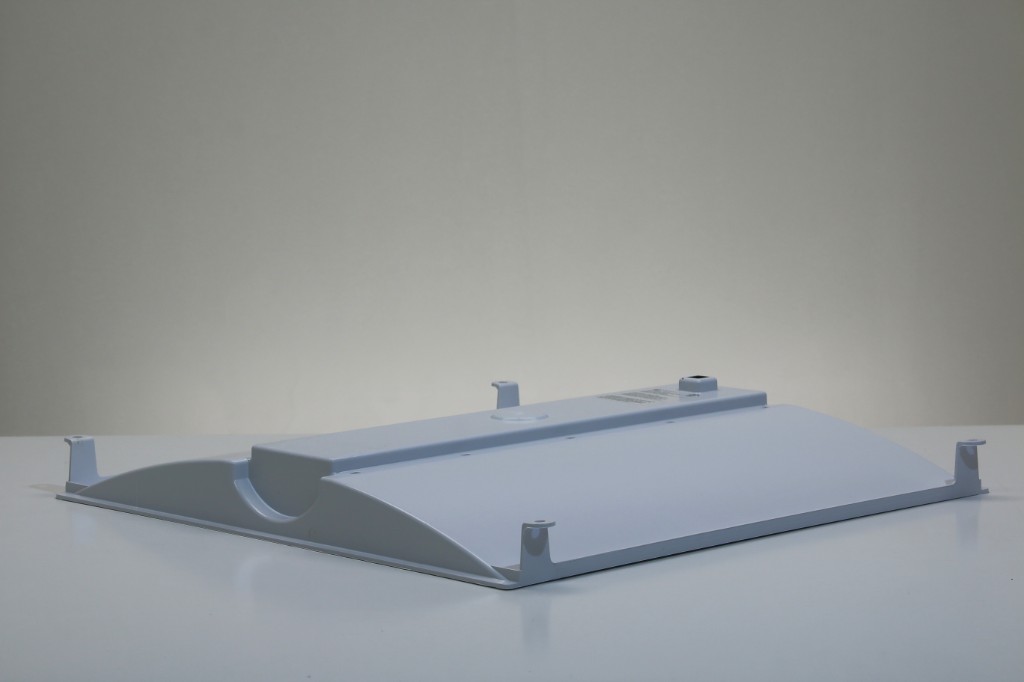

Rear view of GENISYS Leaf Troffer showing lightweight composite housing and grid mounting tabs

In the field
